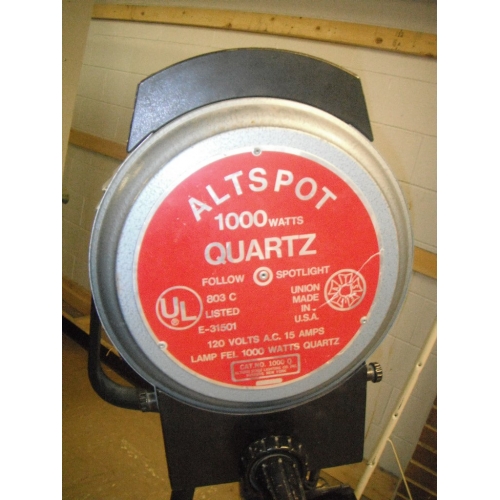

Altspot 1000W Quartz Follow Spotlight E-31501

Altspot

1000 Watts

Quartz

Follow Spotlight

803C

E-31501

120 Volts AC 15 Amps

Lamp Fel 1000 Watts Quartz

Sheet steel and die cast aluminum
construction
• Rear operated controls
• Integral iris and framing shutter
• Six color boomerang with douser
• Positive locking pan and tilt
adjustment
1000 Wa t t
1000Q
Follow Spot
F e a t u r e s
F O L L O W S P O T L I G H T I N G
12"
(30 cm)
42"
(107 cm)
MAX.
38"
(97 cm)
MIN.
171⁄2"
(44 cm)
621⁄4"
(158 cm)
MAX.
501⁄4"
(128 cm)
MIN.
571⁄2"
(146 cm)
MAX.
451⁄2"
(116 cm)
MIN.
701⁄2"
(179 cm)
MAX.
581⁄2"
(149 cm)
MIN.
24"
(61 cm)
171⁄2"
(44 cm)
FRONT VIEW

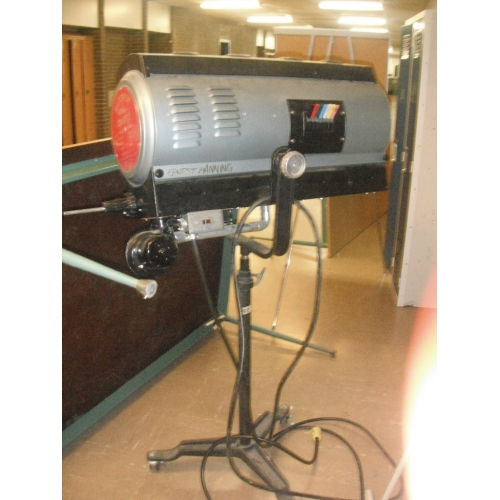

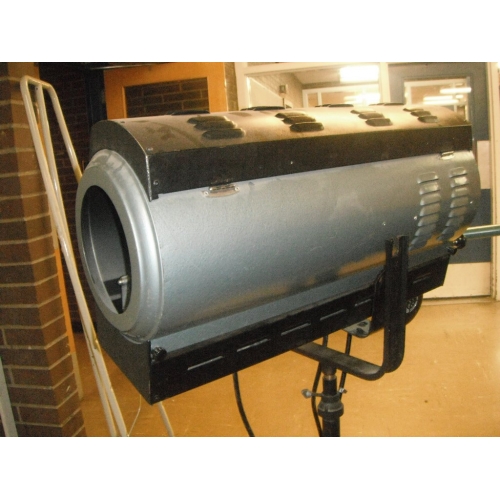

A ruggedly constructed medium throw follow spot, the 1000Q produces
a narrow, hard or soft edged beam. With easy to use controls mounted
at the rear of the luminaire, the beam can be adjusted from spot to flood
at any distance. The beam may be further attenuated by using the integral
iris for spot size adjustment and the framing shutters for top and bottom edge
framing in the flood focus position. The 1000Q is designed for operation only
with high performance quartz halogen lamps. The luminaire can be used in any
application where manual control of a lighting beam is required to follow a
performer and to vary beam size, quality and color.
Specifications subject to change without notice
Catalog Number
1000Q

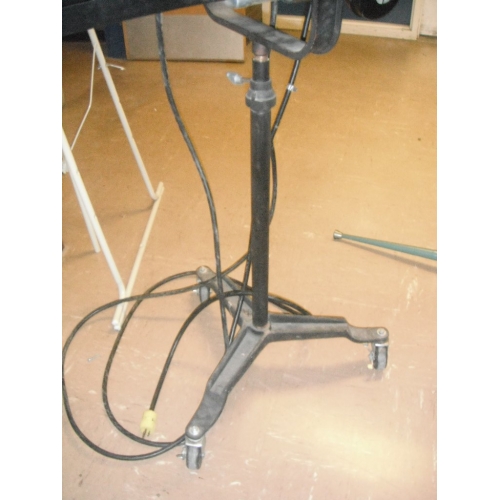

• Adjustable locking castered stand
with cable hook included
• Integral 25' power cable
• U.L. and c.U.L. listed for 1000 watts
• Made in the USA

Colour: Grey

Condition: Used. From a high school

Usage: Theatre

Location: Calgary
