Click to enlarge
| Product ID: | 9788 |
| Price: | $1,100.00 |
| Availability: | Sold! |

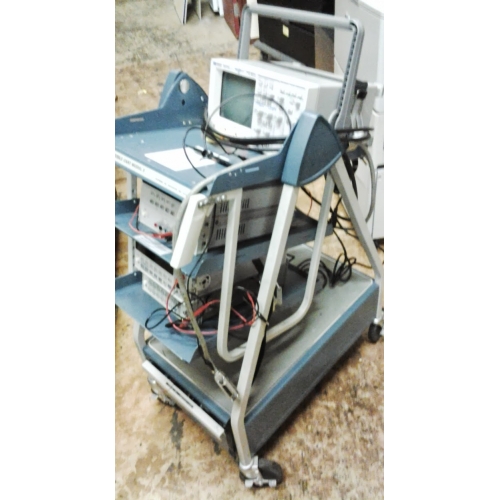

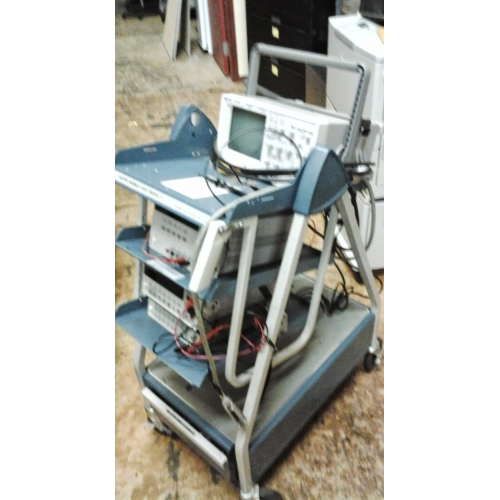

Complete Electronic Scope Mobile Cart Model 3 by Tektronix incl. Equip
comes with:
Agilent / HP 54645A
This unit is a 2Ch 100MHz deep memory and megazoom oscilloscope, 2ns/div sweep speed and 200MSa/s acquisition, coupled with its unique high speed display, gives you the view of your critical digital control signals needed to ensure proper circuit operation.
In addition, it's very deep memory and 50 second/div sweep speed allow you to capture transducer and analog signals at a higher sampling speed at long timebase settings.
Dual channel 100MHz scope with 200MSa/s 1MB of memory per channel Agilent MegaZoom technology allows deep memory capture and a responsive display Simple, easy to use controls Glitch trigger
Specs: Bandwidth Ch 1 and 2 : DC - 100MHz AC Coupled: 1.5Hz-100MHz Single Shot Bandwidth: DC - 50MHz Sensitivity Ch 1 and 2 : 1mV/div to 5V/div DC Gain Accuracy: ± 1.5% RiseTime (calculated) Ch 1 and 2: <3.5ns Input Impedance: 1 M, ~ 13 pF Input Coupling Ch 1 and 2: DC, AC or Ground Maximum Input (DC + peak AC ): 400V Timebase Range (main and delayed): 5s/div to 2 ns/div Resolution: 8 bits Power Voltage: 100-240Vac, 45 to 440Hz, 220VA maximum
Available: 1
Colour: Grey
Condition: Used
Usage:
Location: Calgary
Agilent / HP E3631A
The Agilent / HP E3631A programmable DC power supply gives performance of system power supplies without the high price.
The Agilent / HP E3631A power supply gives you clean power, dependable regulation and fast transient response with built-in GPIB and RS-232 interface.
The E3631A DC power supply is designed to meet the most demanding applications in R&D design verifications, production testing, and QA verifications with traditional HP quality and reliability you can count on.
The E3631A power supply specifies both normal mode voltage noise and common mode current noise. The low normal mode noise specification assures clean power for precision circuitry applications and the low common mode current provides isolation from power line current injection.
The E3631A power supply comes equipped with both GPIB and RS-232 as standard. All programming is done in easy to use SCPI (Standard Commands for Programmable Instruments).
A knob and self-guiding keypads allow setting the output at the resolution needed for the most exacting adjustments quickly and easily.
The Agilent / HP E3631A allows storing up to three complete setups and recalling from the internal nonvolatile memory. The output on/off button sets the output to zero.
This famous 80-watt triple output supply offers three independent 0 to +6V/5A and 0 to +/-25V/1A outputs. The 6V output is electrically isolated from the +/-25V supply to minimize any interference between circuits under tests. The +/-25V outputs can be set to track each other.
This 120W, GPIB, single output unit is a high performance supply optimized for manual and basic automated testing; and, with a combination of benchtop capabilities and system features, it is designed to help improve measurement quality and reduce test time.
Single and triple outputs 80W to 200W output power Low noise and excellent regulation High accuracy and resolution GPIB and RS-232 standard
Specs: Output Ratings: Output 1: 0 to 6V, 0 to 5A, Output 2: 0 to +25V, 0 to 1A, Output 3: 0 to -25V, 0 to 1A Programming Accuracy at 25 ± 5 deg C: Voltage: 0.05% + 20 mV, 0.05% + 20 mV, 0.1% + 5 mV, Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA Readback Accuracy at 25 ± 5 deg C: Voltage: 0.05% + 10 mV, 0.05% + 10 mV, 0.1% + 5 mV, Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA AC Input: 100 Vac ± 10% (Opt 0E9) / 115 Vac + 10% (Std) / 230 Vac ± 10% (Opt 0E3) Dimension: 213 mm W x 133 mm H x 348 mm D Net Weight: 8.2kg (18 lbs)
Available: 1
Colour: Grey
Condition: Used
Usage:
Location: CalgaryAgilent / HP 34401A
The Agilent 34401A is the world´s best selling benchtop Digital Multimeter (DMM). This industry standard multimeter provides uncompromising performance for system and benchtop testing.
1000 readings/second in ASCII format across the GPIB bus 512 reading memory
Specs: 6½ digit resolution 12 measurement functions, plus limit testing, ration and min/max average Basic accuracy: 0.0035% DC, 0.06% AC 1000 V max input
Available: 1
Colour: Grey
Condition: Used
Usage:
Location: CalgaryAgilent / HP 33120A
The Agilent 33120A is a high performance 15 MHz synthesized function generator with built-in arbitrary waveform capability.
Its combination of bench-top and system features makes this function generator a versatile solution for your testing requirements now and in the future.
To create a stable, accurate output signal for clean, low-distortion sine waves, Agilent Technologies 33120A uses direct digital-synthesis techniques.
The 33120A also gives rise- and fall-time square wave, and linear ramp waveforms down to 100 micro Hz.Use the 33120A to generate complex custom waveforms such as heart beat or the output of a mechanical transducer.
With 12-bit resolution, and a sampling rate of 40 MSa/s, the 33120A gives you the flexibility to create any waveform.
33120A also lets you store up to four 16,000 deep waveforms in nonvolatile memory. The front panel operation of the 33120A is straightforward and intuitive.
You can access any of ten major functions with a single key press or two, then use a simple knob to adjust frequency, amplitude and offset.
No separate modulation source is necessary as 33120A has internal AM, FM, FSK and burst modulation.
The option 001 phase lock/TCXO timebase gives the ability to generate synchronized phase-offset signals.
Specs: Frequency Characteristics: Sine: 100micro Hz- 15MHz Square: 100micro Hz-15MHZ, Triangle: 100micro Hz–100 kHz, Ramp: 100 micro Hz -100 kHz, White noise: 10 MHz bandwidth, Resolution: 10 micro Hz or 10 digits, Accuracy: 10 ppm in 90 days, 20 ppm in 1 year, 18 deg C - 28 deg C, Output impedance: 50 ohms, Resolution: 3 digits, amplitude and offset Power Supply: 110V/120V/220V/240V ±10% Power Line Frequency: 45 Hz to 66 Hz and 360 Hz to 440 Hz Power Consumption: 50VA peak (28 W average) Operating Environment: 0 deg C to 55 deg C Storage Environment: -40 deg C to 70 deg C State Storage Memory: Power Off state automatically saved, 3 User Configurable Stored States Interface: IEEE-488 and RS-232 standard Language: SCPI - 1993, IEEE-488.2 Dimensions (W x H x D): Bench top - 254.4mm x 103.6mm x 374mm, Rack mount: 212.6mm x 88.5mm x 348.3mm Weight: 4 kg (8.8 lbs) Safety Designed to: UL-1244, CSA 1010, EN61010 EMC Tested to: MIL-461C, EN55011, EN50082-1 Vibration and Shock: MIL-T-28800, Type III, Class 5 Acoustic Noise: 30 dBa Warm-up time: 1 hour
Available: 1
Colour: Grey
Condition: Used
Usage:
Location: Calgary
