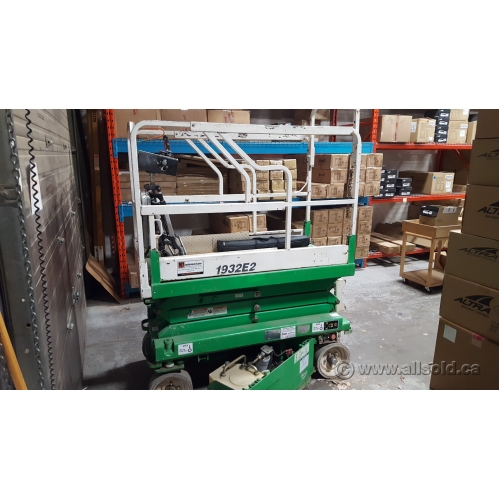

JLG 1932E2 Green 19' Electric Platform Scissor Lift Manlift

The E2 Series scissor lifts help you work faster, smarter and easier than ever before. With optimum function speeds for both travel and lifting, higher duty cycles that keep you on the job longer, and a compact design that gets you through the door and up to the height you need to reach—the E2 Series is ready to work when you are.

Narrow Aisle Model, can navigate through narrow aisles and other confined spaces to efficiently access hard-to-reach areas and increase productivity.


JLG 1932E2 SPECS
Platform Height - Elevated: 19ft (5.79m)
Platform Height - Lowered: 3ft.3in (0.99m)
Platform Railing Height: 3ft.3in (0.99m)
Platform Size: 31x64in. (0.79x1.63m)
Platform Extension: 3ft. (0.91m)
Overall Height: 6ft 7.5in (2.02m)
Overall Width: 2ft.8in. (0.81m)
Overall Length: 5ft.8.5in. (1.74m)
Wheelbase: 4ft.4in. (1.32m)
Ground Clearance: 2.75in. (7cm)
Platform Capacity: 500 lb (227 kg)
Capacity on Platform Extension: 250 lb (113 kg)
Weight: 2,620lb (1,188kg)

PERFORMANCE DATA
Drive Speed - Lowered: 2.5 mph (4 kmph)
Drive Speed - Elevated: 0.5 mph (0.8 kmph)
Gradeability: 25%
Tire Size: 12.5x4in. Non-Marking Solid
Brakes: Automatic Rear Wheel Parking

POWER SOURCE/CHASSIS
Batteries: 4 x 6V 220 amp-hr
Charger: 20 Amp Automatic SCR 120/250V,50/60HZ
Electric Motor: 3.5hp (2.6KW)
Pump: Single Section Gear
Hydraulic Reservoir: 3gal (11.4L)

Colour: Green

Condition: Used

Usage: Warehouse, Construction

Location: Calgary
